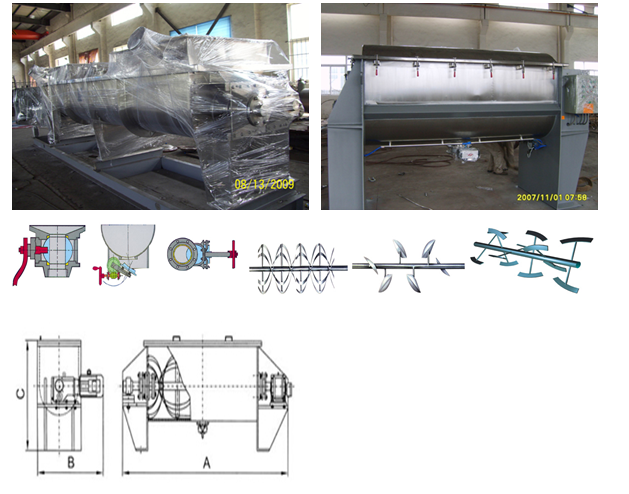

Ribbon mixer can be produced ccording to the client's demands : It can use heating or cooling jacketed .barrel body can adopt positive or negative voltage.The discharge location can be fitted at the bottom or center.A liquid spray device , shredder, heart-shaped discharge valve, or conveyor can be set in this machine. The outlet valve can be equipped with the standard pulley valve, sliding valve, ball valve, or embedded valve. Barrel can be U-shaped or cylindrical. The blender has ribbons and special paddles, which can choose direct driving, belt driving, or coupling driving. Mixing Principle The ribbon mixer flips material up and down and push it in all direction. the role of weeks to flip, The materials in inner and the outer layer move in bidirectional radiation due to the special structure of the ribbon mixer,that can quickly achieve fine mixing effects. Advantages: 1，well-adapted，be able to do solid-solid, solid-liquid,and liquid-liquid mixing
2, high mixing precision.Standard deviation is three in hundred thousand under powder ratio of 1:10000.
3, moderate mixing process, large material loading capacity, load factor 0.7 to 0.9.
4, no transmission components in barrel , pollution-freefor treated materials.
5,Good sealing ,stable operation, low noise.
6,Compact structure, simple to operate, easy maintenance.
Applications Infant milk powder, cocoa, salt, starch, beverage powder, and animal food Plastic,solution ,talc, jelly products ,polyester, explosives, chemical products, dyes, ceramic, detergent,developing powder ,polishing compounds ,abrasive powder ,plastic additives, and PVC compounds Pesticides, herbicides, insecticides, aspirin, the dental powder ,penicillin ,andantacid powder Water treatment, spices, detergent, powder used on face or foot,and catalyzer Optional designing features ◇outlet valve: specially made no dead ends valves including ball valves, pulleys, valves, embedded valves, steering wheel-mounted gate valves
◇manufacturing materials: stainless steel, carbon steel, titanium, etc.
◇ shape design: clients can choose U-shaped or cylindrical barrel according to their production process and working area
◇charging device: different shapes of the feeding port, artificial intermittent feeding or automatic continuous feeding
◇ liquid spray device: intermittent or continuous measured
◇ jacket devices: cooling, steam heating, electric heating,or oil heating
◇ vacuum sealed: working under 0.96Mpa
◇pressure sealed: Material in a pressurized state
◇stuffing box: standard type, air or liquid sealed, or sanitary type
◇ power plant: single-speed, two-speed, frequency control, cycloidal-pin wheel, reduction gears, bevel gear, helical gear, worm gear and screw reduction gears
◇shredder: high-speed shredder for shredding solid or polymer materials
|
